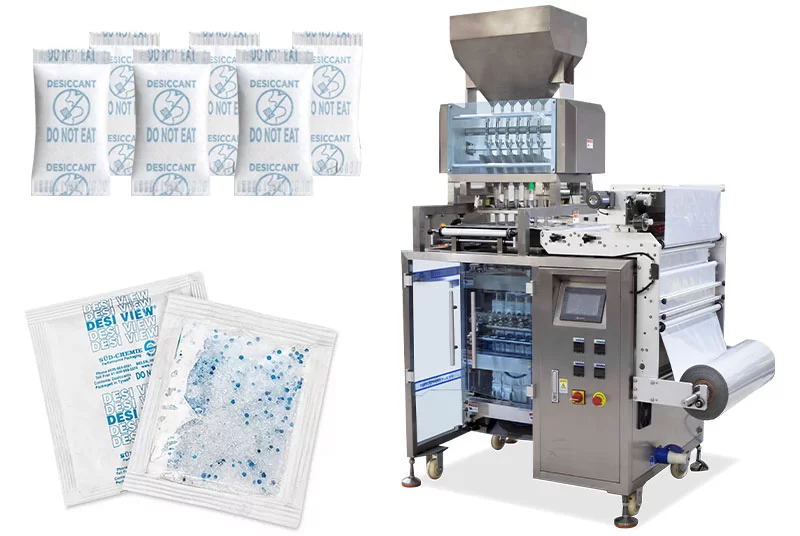

6 Lane Desiccant 3/4 Sealing Sachet Packing Machine

Description

Model	480K	720K	960K
Track Number	4~6Track	4~10Track	4~12Track
Filling Method	1.Volumetric cup;   2.Weigher
Capacity	Max.35 cycle/min
Sachet Size	L:45–120mm; W:35-60mm	L:45–120mm; W:35-90mm	L:45–120mm; W:35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	4 sides sealing	4 sides sealing	4 sides sealing
Cutting Type	1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power	0.8 mpa  0.8m³/min; 2.8kw	0.8 mpa  0.8m³/min; 4.1kw	0.8 mpa  0.8m³/min; 5.5kw
DIM & WT	950*1470*1750mm; 300kg	1153*1654*1750mm; 400kg	1415*1686*2130mm; 500kg

● Advanced performance, high power, low noise, compact structure, operate steadily, easy to maintain, and has a long life span. Film sending mechanism can rotate with 90°in level, and add with film contacting mechanism, which make film change and maintain easier.Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.

● A high degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, and transverse cutting to outputting finished sachets.

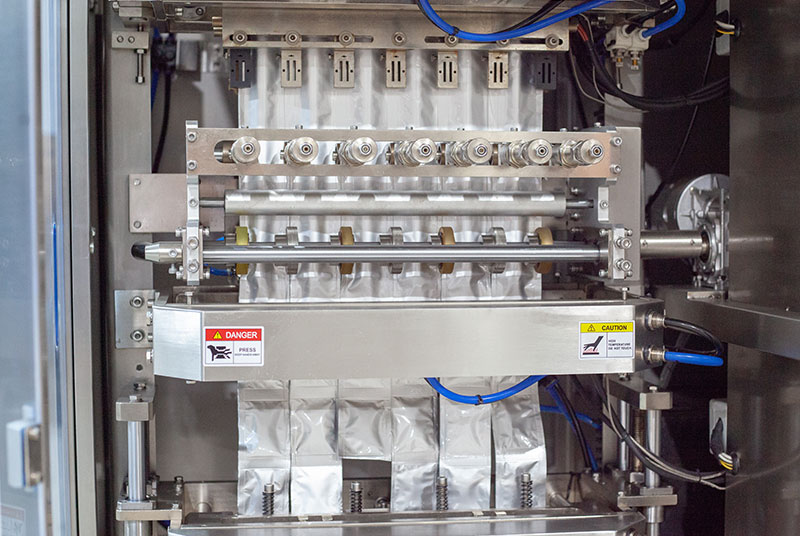

● High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.

● Easy and fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting, and transverse cutting through man-machine interface.

● Accurate in measurement. According to different granule material, specially designed of cylinder pushing vibrating type or flat shape push pull type adjustable measuring mechanism. Vibrating type matches with triangle adjustable measuring cup feeding mechanism, push pull type designed with plate inside measuring cups, both feeding system can be adjusted independently and accurately, each line’s dosage can be adjusted easily and accurately.

● Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.

● The machine with film automatic correction and film damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.

● Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy(±1℃). Suitable for most complex film packing film: such as PET/AL/PE, PET/PE, NY/ALPE, NY/PE and so on.

● Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.

Application:

6 lane granule 3/4 sealing sachet packing machine, it is suitable for many kinds of fine granule products, such as sugar, salt, small grains, coffee, seeds, spice, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Examber:

The 6 Lane Desiccant 3/4 Sealing Sachet Packing Machine is a reliable and efficient solution for optimizing your packaging process. This machine offers the ability to quickly and accurately package products of various sizes, while providing protection from moisture damage. The sachet packing machine features six lanes that can be used simultaneously, enabling you to increase production speeds and improve overall efficiency. Additionally, the 3/4 sealing system ensures that your products are securely sealed and protected from external elements. With its advanced technology and robust design, this machine is an ideal choice for businesses looking to streamline their packaging process.

Increasing Efficiency with 6 Lane Desiccant 3/4 Sealing Sachet Packing Machine

The 6 Lane Desiccant 3/4 Sealing Sachet Packing Machine is a high-efficiency packaging solution designed to improve the speed and accuracy of product packaging. This machine is capable of producing up to six lanes of desiccant sachets in one cycle, allowing for increased productivity and efficiency. It features a three-quarter sealing system that ensures an airtight seal, preventing moisture from entering the package and preserving the quality of your products. The machine also includes adjustable settings for speed, temperature, and sealing pressure to ensure optimal performance. Additionally, its intuitive user interface makes it easy to operate and maintain. With its advanced features and superior performance, this machine can help you maximize efficiency while ensuring product safety and quality.

Optimizing Packaging Processes with Automated Solutions

Automated solutions for optimizing packaging processes can help businesses reduce costs, increase efficiency, and improve product quality. These solutions are designed to automate the entire packaging process from start to finish, from product loading and labeling to packing and shipping. Automated solutions can be used to automate manual tasks such as picking, packing, labeling, and sorting products. They also provide advanced features such as barcode scanning and RFID tracking that allow businesses to track their inventory in real-time. Automated solutions also enable businesses to customize their packaging process with custom settings that optimize speed and accuracy while ensuring product safety. By leveraging automated solutions for their packaging processes, businesses can streamline operations while improving customer satisfaction.

Streamlining Production Through Advanced Technology

Streamlining production through advanced technology is a process of improving production efficiency and effectiveness by utilizing modern technologies such as automation, robotics, computer-aided design (CAD), computer-aided manufacturing (CAM), and artificial intelligence. This process helps to reduce costs, increase productivity, improve quality control, and optimize resource utilization. Advanced technology can also be used to streamline processes such as inventory management, order processing, supply chain management, scheduling, forecasting and analytics. Streamlining production through advanced technology can help organizations achieve greater efficiency in their operations while also improving customer satisfaction.

Enhancing Product Quality with Sealed Sachet Packaging

Sealed sachet packaging is an effective way to enhance product quality and protect against contamination. It provides a barrier between the product and the environment, keeping it safe from dust, dirt, moisture, and other contaminants. The sealed sachets are also airtight and water-resistant, which helps maintain product freshness for longer periods of time. Additionally, these sachets can be printed with branding or promotional information to help promote the product or brand. Sealed sachet packaging is an ideal solution for food products that require extended shelf life or need to be kept in optimal condition until they reach their destination.

Reducing Costs by Leveraging Innovative Technologies

Reducing costs by leveraging innovative technologies is a strategy used by businesses to optimize their operations and improve efficiency. This involves using the latest technologies to automate processes, reduce manual labor, and streamline operations. By doing so, businesses can reduce operational costs while improving productivity and quality of output. Additionally, leveraging innovative technologies can help businesses gain competitive advantages in terms of cost savings and improved customer experience. This includes using cloud computing for data storage and analytics, automation for routine tasks, artificial intelligence for decision-making support, machine learning for predictive analytics, blockchain technology for secure transactions, internet of things (IoT) devices to monitor performance metrics in real-time, and more.

Conclusion

The 6 Lane Desiccant 3/4 Sealing Sachet Packing Machine is an efficient and reliable way to optimize your packaging process. It is designed to provide high-speed, accurate sealing of sachets in a variety of sizes. This machine can be easily integrated into existing production lines and provides excellent quality control with its advanced features. The machine also offers flexibility in terms of product size, allowing you to customize the size of the sachets according to your needs. With its robust construction and superior performance, this machine is sure to provide long-term reliability and cost savings for your business.
