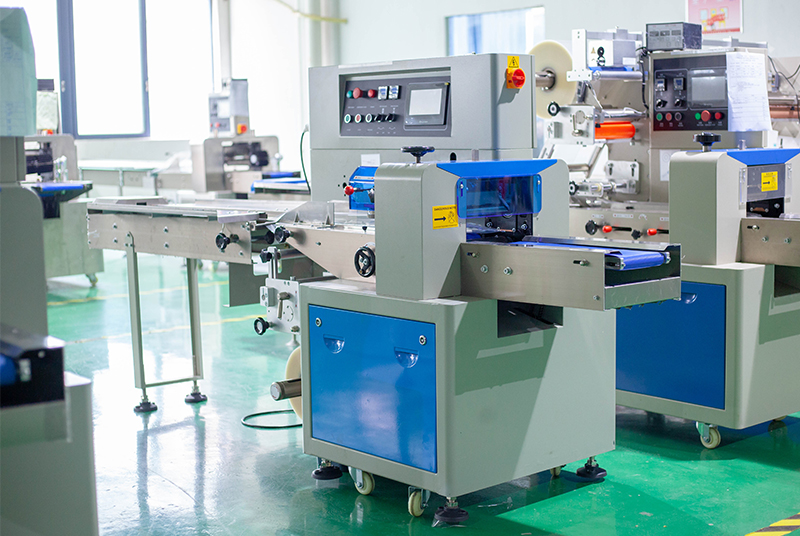

Automatic Horizontal Flow Wrap Packaging Machine

Description

Application:

Suitable for packaging various kinds of regular objects like biscuits, pies , chocolates,bread, instant ,noodles, moon-cakes,drugs, daily applications, industrial parts,paper boxes,tray. Etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

Dual frequency conversion control, Bag length can be set and cut in one step,saving time and film.

Interface features easy and quick setting and operation

Self failure diagnosis, clear failure display

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packaging different materials

Positioned stop function, without sticking knife or wasting film.

Simple driving system, reliable working, convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.

Parameter

Model	VK-250B	VK-350B	VK-450B	VK-600B	VK-700B	VK-800B	VK-900B
Film width	Max250mm	Max350mm	Max450mm	Max600mm	Max700mm	Max.800 mm	Max.900mm
Bag length	65-190mm or120-280mm	65-190mm or120-280mm	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180bags/min	30-150Bags/min	20-150 bags/min	20-130 bags/min	20-120bag/min	20-100 bags/min
Power	220V,50/60Hz,2.4kw	220V,50/60Hz,2.6kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,4.5kw	220V,50/60Hz,4.5kw
Machine size	（L）3770*（W）720*（H）1420mm	（L）4030*（W）770*（H）1420mm	(L)4030*(W)820*(H)1420mm	(L)4030*(W)970*(H)1500mm	(L)4030*(W)980*(L)1500mm	(L)4100*(W)1170*(H)1550mm	(L)4300*(W)1270*(H)1550mm
Machine quality	About 500kg	About 580kg	About 650kg	About 680kg	About 720kg	About 800kg	About 850kg
Remarks	optional air filling device）/optional angle folding）
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

The Automatic Horizontal Flow Wrap Packaging Machine is a specialized device used in the packaging industry for wrapping and sealing products in a horizontal flow pack. It is commonly used in industries such as food, pharmaceuticals, and cosmetics, where fast and efficient packaging is required.

The machine is equipped with a feeding system that can handle a wide range of products, such as biscuits, chocolate bars, soap bars, and many others. The product is then transported along a conveyor belt, where it is wrapped in a flow pack made of a variety of packaging materials, such as polypropylene, polyethylene, or laminated films.

The machine operates with high precision and accuracy, ensuring that each pack is tightly sealed and perfectly wrapped. The sealing process is done with a sealing jaw that applies heat and pressure to the pack, creating a strong and reliable seal.

The Automatic Horizontal Flow Wrap Packaging Machine is also designed for high efficiency, with the ability to package up to 150 packs per minute. The machine is also equipped with an easy-to-use control panel, allowing operators to easily adjust the machine settings to accommodate different products and packaging materials.

The machine is constructed with high-quality materials, ensuring durability and reliability even in demanding production environments. It is also designed with safety features that protect operators and prevent damage to the machine.

In summary, the Automatic Horizontal Flow Wrap Packaging Machine is an essential tool for businesses that require fast and efficient packaging of various products. Its precision, efficiency, and reliability make it an ideal investment for businesses looking to streamline their production processes and increase their packaging efficiency.
