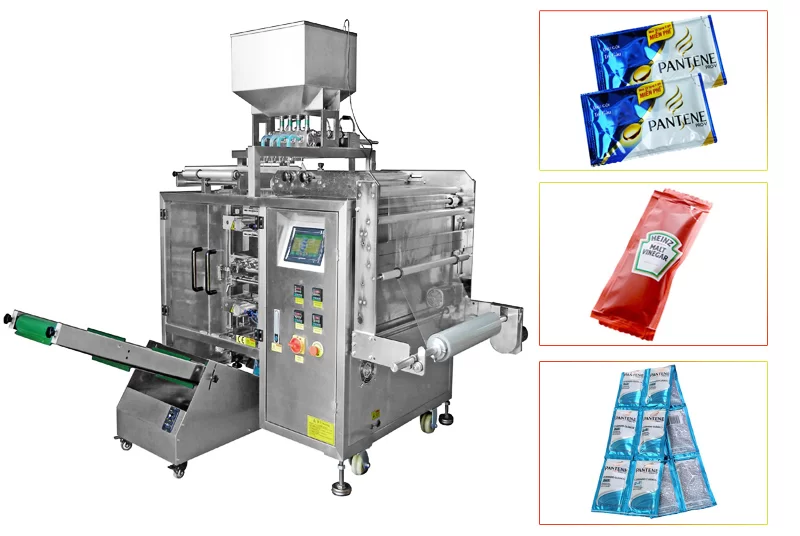

Automatic Multilane Sauce / Jam / ketchup Sachet Packing Machine
Description
Application:
Suitable for many kinds of liquid products, such as shampoo, ketchup, honey, sauce, oil, paste, ice candy, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
- Multi lanes machine can produce multi lanes bags at same time.

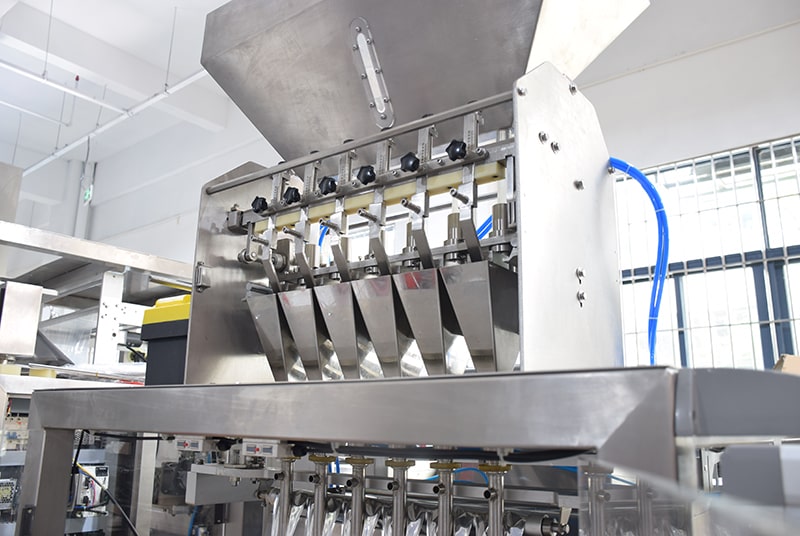

- Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

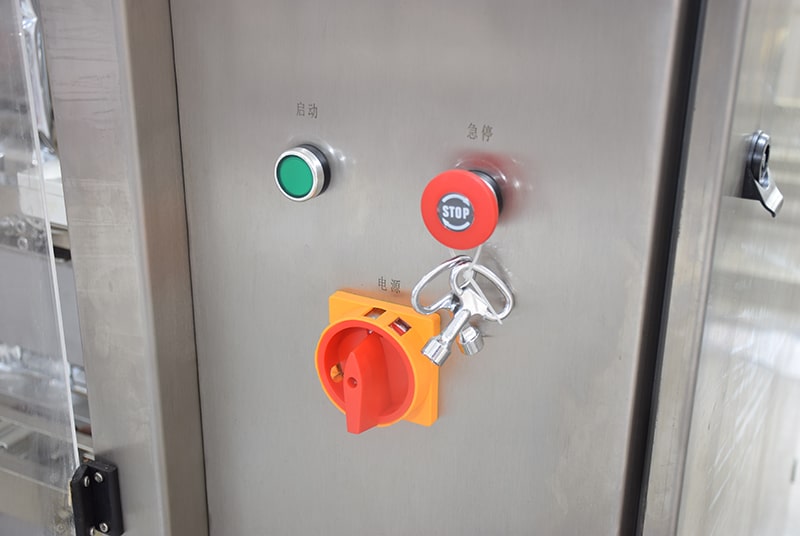

- Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
- Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
- High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
- PLC controller, high function and control the whole machine’s work steps.
Parameter
| Model | 480Y | 720Y | 960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45–120mm; W:35-60mm | L:45–120mm; W:35-90mm | L:45–120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
Looking for an efficient, reliable, and cost-effective solution to automate the packing of your sauces, jams, and ketchup? Look no further than the Automatic Multilane Sauce/Jam/Ketchup Sachet Packing Machine!
This top-of-the-line machine is specifically designed to streamline the packaging process, allowing you to maximize your production output and minimize your costs. With its advanced technology and state-of-the-art features, this machine is perfect for any business looking to take their packaging process to the next level.
Thanks to its multiple lanes, the Automatic Multilane Sauce/Jam/Ketchup Sachet Packing Machine can pack multiple sachets at once, reducing the time it takes to package your products. Plus, its compact design allows it to fit perfectly into any production line, ensuring seamless integration with your existing equipment.
The Automatic Multilane Sauce/Jam/Ketchup Sachet Packing Machine is incredibly versatile and can be customized to suit your specific needs. Whether you need to pack sauces, jams, ketchup, or any other liquid or semi-liquid product, this machine is up to the task.
But that’s not all – this machine also boasts an intuitive and user-friendly interface, making it easy to operate and maintain. Plus, with its durable and robust construction, you can be sure that this machine will stand the test of time and continue to deliver exceptional performance for years to come.
So why wait? Invest in the Automatic Multilane Sauce/Jam/Ketchup Sachet Packing Machine today and take your packaging process to the next level. With its advanced features, superior performance, and unbeatable value, this machine is the perfect choice for any business looking to maximize their production output and minimize their costs. Order now and see the difference for yourself!
