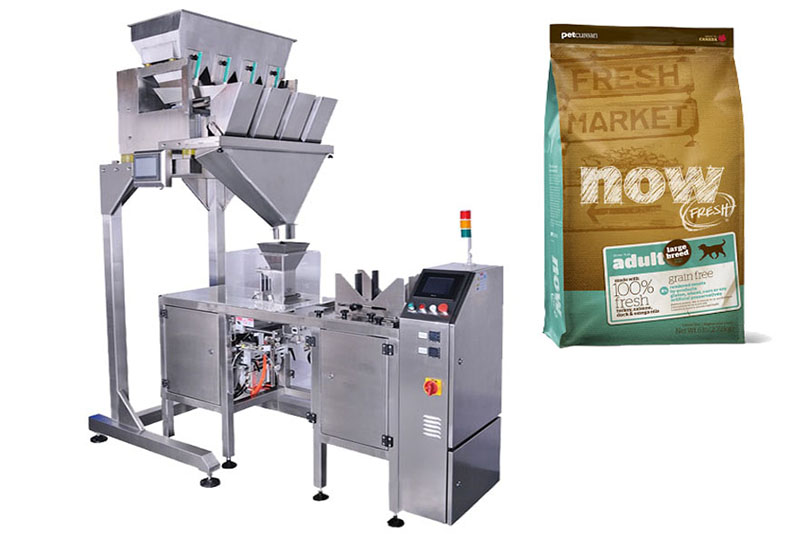

Automatic Pet Food Premade Pouch Packing Machine With 4 Head Linear Weigher
Description
Application:
It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch no-zip-lock.
Suitable for small granule material,such as dog food, cat food, fish food, bird food, and other granular pet food pre-made bags.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Basic Configurations:
Touch Screen: China Kinco 7 inches corlor touch screen;
Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);
PLC: Japan Panasonic;
Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);
Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);
Vacuum Component: Japan SMC;
Modular Control System For Vacuum Pressure: Japan SMC;
Modular Control System For Temperature: China YUDIAN;
Electrical Component: Schneider / Omron;
Safety Key Interlock Switch;
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).
Basic Functions:
The machine stops running when the safety key interlock switch is pulled out;
No bag prompting function;
Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;
Positioning (anti-dropping) function of hopper;
Warning function of cartridge heater fault ;
Warning function of cylinder fault.
Warning function which air pressure is not up to standard.
Performance Features:
Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;
Low maintenance cost / Modular replacement of the parts;
Certificate of Conformity.
Parameter
Model: VK-300AX/VK-430A
Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)
Bag Type: 3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
Size Range: 80mm≤W≤300mm 100mm≤L≤400mm
Speed: 0~15bags/min
Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width: 10mm (5–20mm can be customized)
Voltage: 220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure: 0.65Mpa
Air Consumption: 0.3m³/min (Standard machine, no additional function)
Body Dimension: 1770*600*1260mm
Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)
This machine is designed to handle high-speed production, ensuring that manufacturers can efficiently package their products without compromising quality.
The Automatic Pet Food Premade Pouch Packing Machine is fully automated, ensuring that the packaging process is accurate and consistent. The machine is capable of filling and sealing up to 60 pouches per minute, with each pouch holding up to 1kg of pet food. This level of efficiency is unmatched by other packaging machines, making it the perfect solution for manufacturers who demand high output rates.
The machine is constructed using high-quality materials, which ensures its durability and longevity. Its stainless steel frame provides a sturdy and hygienic base that can withstand the demands of daily production. Additionally, its compact design ensures that it can fit into tight spaces, saving valuable floor space in production facilities.

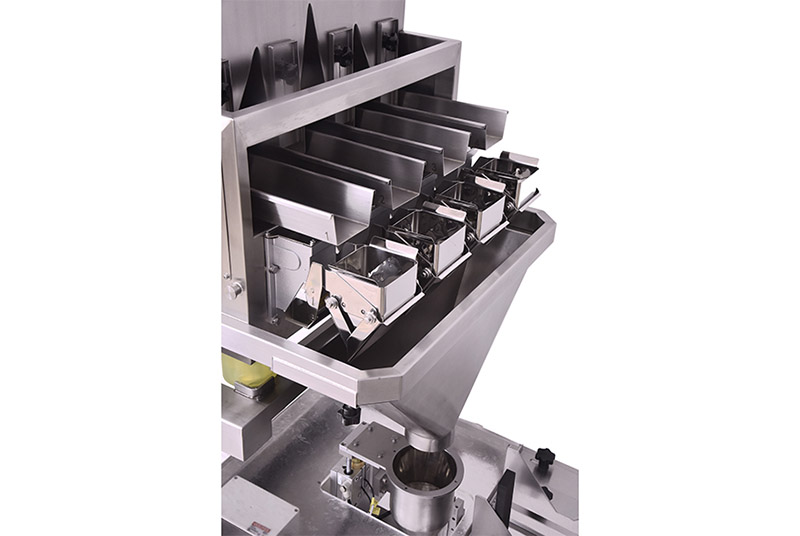

The Automatic Pet Food Premade Pouch Packing Machine with 4 Head Linear Weigher features a 4-head linear weigher that accurately weighs each pouch, ensuring that the amount of pet food in each pouch is consistent. This feature eliminates the risk of overfilling or underfilling, which can lead to product waste and customer dissatisfaction.
The machine is also versatile, as it can handle different types of pet food products, including dry kibble, wet food, and treats. This flexibility makes it an ideal solution for manufacturers who need to package different types of pet food.
Overall, the Automatic Pet Food Premade Pouch Packing Machine with 4 Head Linear Weigher is a game-changer in the pet food packaging industry. Its high-speed production rates, durability, accuracy, versatility, and user-friendly interface make it the ideal solution for manufacturers who demand the best. With this machine, manufacturers can improve their packaging processes, reduce production costs, and increase their overall output, ensuring that their products reach the market with the highest level of quality and consistency.
