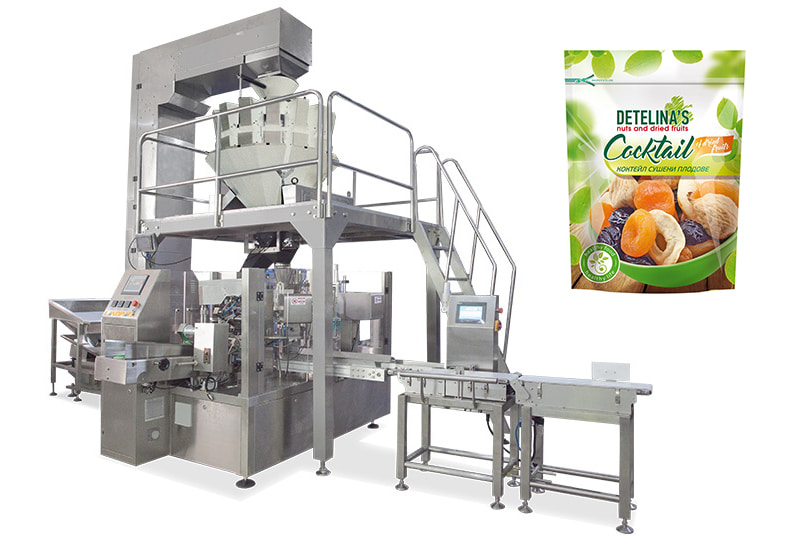

Automatic Snacks Doypack Packing Machine
Description
Application:
Suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

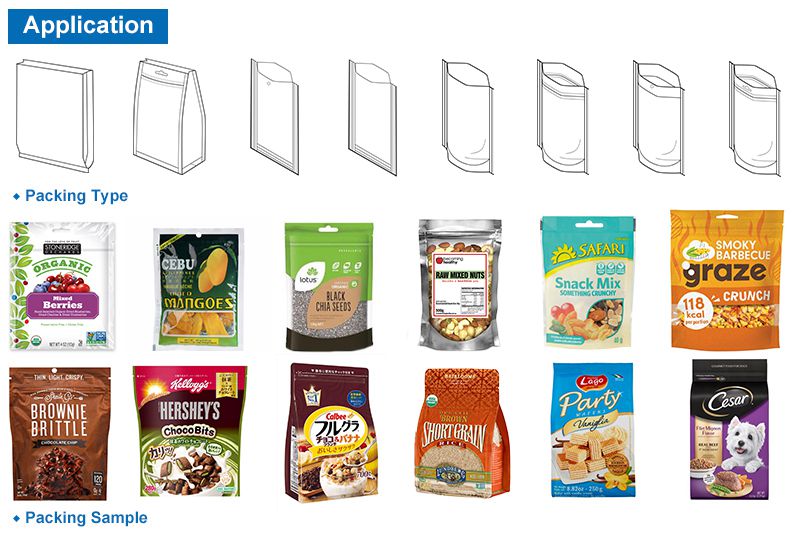

Different kinds of product with stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch, etc,
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)
Easy to operate: PLC and color panel, fault indication on the panel.
Easy to adjust: Only about 10 minutes to change different pouches.
Frequency control: Speed can be adjusted by frequency conversion within the range.
Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
Imported engineering plastic bearings, no need to oil, no contamination.
Oil-free vacuum pump, avoid the pollution of the production environmental.
Parameter
| Model | 8200/8250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| size | W：70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
An automatic snacks doypack packing machine is a specialized packaging solution designed to meet the unique requirements of snacks, such as chips, nuts, and candies. This machine is equipped with advanced features that allow it to accurately and efficiently fill and seal doypack pouches with various types of snacks, ensuring that they are preserved and stored at optimal conditions.
One of the key benefits of this machine is its ability to handle different types of snacks with ease. The machine is equipped with a versatile filling system that can handle various types of snacks, such as irregularly shaped or fragile items, without damaging or crushing them. This ensures that the product is filled accurately and consistently, reducing product waste and improving the quality of the packed product.
Additionally, the automatic snacks doypack packing machine is highly efficient and can handle high volumes of products in a short amount of time. The machine is equipped with advanced automation features, such as automatic pouch loading, filling, and sealing, which reduce the need for manual labor, minimize downtime, and increase productivity.
Another advantage of this machine is its user-friendly interface, which makes it easy to operate and maintain. The machine is equipped with a touchscreen control panel that allows the operator to adjust various settings, such as filling volume, sealing temperature, and sealing pressure, with ease. This ensures that the machine is always running at optimal conditions, and helps to minimize the risk of errors during operation.
Furthermore, the automatic snacks doypack packing machine is highly versatile and can be configured to accommodate different packaging sizes and formats, including stand-up pouches, flat pouches, and zipper pouches. This ensures that the machine is highly adaptable to the unique requirements of each business, and helps to minimize the need for multiple packaging solutions.
In conclusion, the automatic snacks doypack packing machine is a highly specialized and reliable packaging solution for snack products. With its advanced features, such as its versatile filling system, high efficiency, user-friendly interface, and versatility, this machine can significantly improve productivity, reduce labor costs, and enhance the quality of the packed product.
