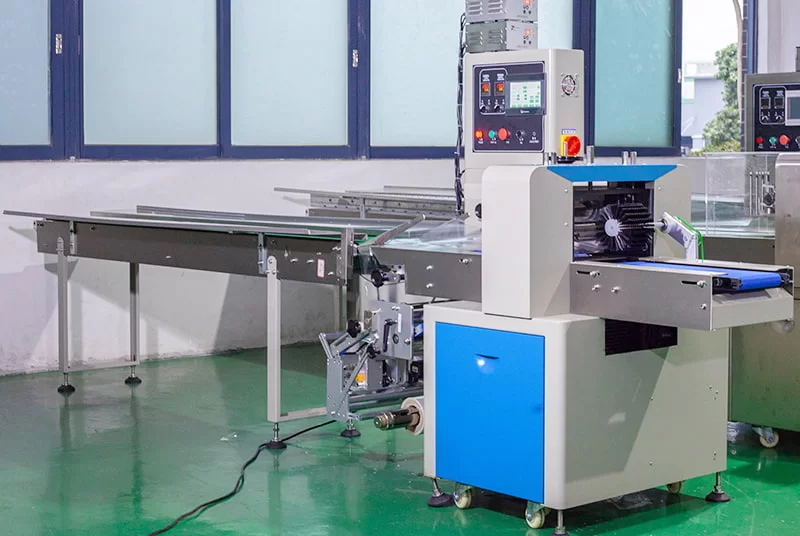

Back Stretch Film Flow Packing Machine For Wet And Sticky Noodles
Description
Application:
Suitable for packaging of various wet and viscous products, such as wet rice noodles, wet vermicelli, chowmein, vermicelli, maggi, fresh noodle, plasticine, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Three servo motor control, Bag length can be set and cut in one step,saving time and film.
Interface features easy and quick setting and operation
Self failure diagnosis, clear failure display
High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
Temperature independent PID control, more suitable for packaging different materials
Positioned stop function, without sticking knife or wasting film.
Simple driving system, reliable working, convenient maintenance.
All control is realized through software,easy for function adjusting and technical upgrade.
Parameter
| Model | VK-250 | VK-350 | VK-450 | VK-600 | VK-700 | VK-800 | VK-900 |
| Film width | Max250mm | Max350mm | Max450mm | Max600mm | Max700mm | Max.800 mm | Max.900mm |
| Bag length | 65-190mm or120-280mm | 65-190mm or120-280mm | 150-450mm | 160-500mm | 180-600 mm | 210-650mm | 240-700mm |
| Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330 mm | 120-350mm | 150-400mm |
| Product height | Max.40mm | Max.40mm | Max.75mm | Max.110mm | Max.110mm | Max.130mm | Max.150mm |
| Film roll diameter | Max.320mm | ||||||
| Packaging rate | 40-230 bags/min | 40-180 bags/min | 30-150 bags/min | 20-150 bags/min | 20-130 bags/min | 20-120 bags/min | 20-100 bags/min |
| Power | 220V,50/60Hz,2.4kw | 220V,50/60Hz,2.6kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,4.5kw | 220V,50/60Hz,4.5kw |
| Machine size | (L)3770*(W)720*(H)1420mm | (L)4030*(W)770*(H)1420mm | (L)4030*(W)820*(H)1420mm | (L)4030*(W)970*(H)1500mm | (L)4030*(W)980*(L)1500mm | (L)4100*(W)1170*(H)1550mm | (L)4300*(W)1270*(H)1550mm |
| Machine quality | About 500kg | About 580kg | About 650kg | About 680kg | About 720kg | About 800kg | About 850kg |
| Remarks | optional air filling device）/optional angle folding） | ||||||
| Film material） | OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film | ||||||
The Back Stretch Film Flow Packing Machine is a specialized equipment designed for the packaging of wet and sticky noodles. This machine is widely used in the food packaging industry due to its high efficiency and reliable performance.
The machine is equipped with a back stretch film feeding system that ensures smooth and stable packaging of the product. The feeding system is designed to prevent the film from sticking to the noodles, ensuring that the noodles are packaged neatly and presentably.
The machine is also equipped with a photoelectric tracking system that accurately detects the position of the noodles on the conveyor belt. This system ensures that the packaging is precise and the product is presented in an attractive manner.
The machine is designed to operate at a high speed, making it suitable for use in high-volume production lines. The packaging process is fully automated, from the feeding of the noodles to the sealing and cutting of the packaging film.
The Back Stretch Film Flow Packing Machine is made of high-quality materials and is designed for easy maintenance and cleaning. The machine is also equipped with a user-friendly control system that allows for easy operation and adjustment.
In summary, the Back Stretch Film Flow Packing Machine is a highly efficient and reliable packaging equipment that is ideal for wet and sticky noodle packaging. Its advanced features and user-friendly design make it a popular choice for businesses in the food packaging industry.
