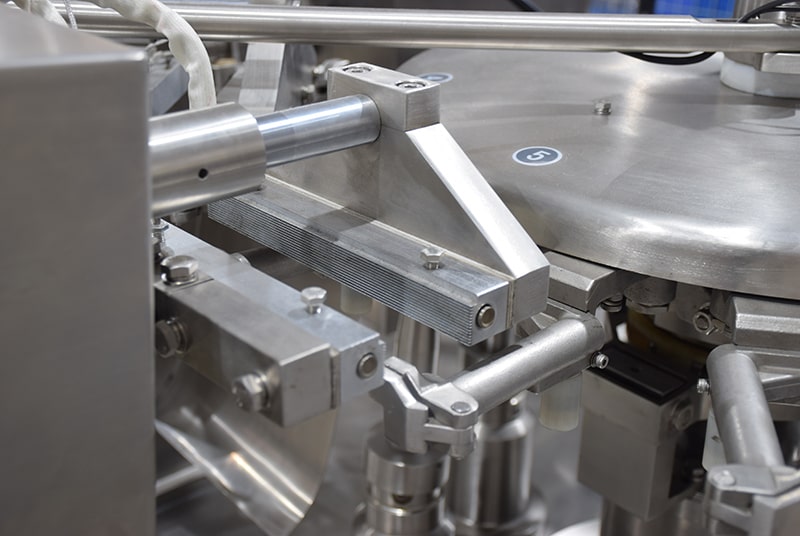

High Efficient KF94/ KN95/ N95 Face Mask Rotary Packing Machine
Description
Application:
Suitable for pre-made pouch packaging of KN 95, KN 94, N 95, surgical masкs, plane masкs, medical masкs, disposable masкs etc.
Suitable Pouches:
All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)
Easy to operate: PLC and color panel, fault indication on the panel.
Easy to adjust: Only about 10 minutes to change different pouches.
Frequency control: Speed can be adjusted by frequency conversion within the range.
Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
Imported engineering plastic bearings, no need to oil, no contamination.
Oil-free vacuum pump, avoid the pollution of the production environmental.
Parameter
| Model | VK-8200/VK-8250 |
| Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
| size | W：70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60bag/min（speed is determined by the product filling quantity） |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900mm X 1570mm X 1700mm（L*W*H） |
| Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
The high-efficient KF94/KN95/N95 face mask rotary packing machine is a specialized equipment used in the packaging of face masks. The machine is designed to efficiently package face masks with high speed and accuracy, while ensuring the masks are protected from contamination and damage during the packaging process.
The operation of the machine begins with the feeding of the face masks into the machine, either manually or automatically. The masks are then transported to the packaging station, where they are placed into individual pouches. The pouches are then sealed and cut with precision to create airtight packaging.
The packaging process is controlled by a high-precision metering system, which ensures accuracy in the packaging of each mask. The machine is also equipped with advanced technology and features, such as touch-screen control panels, automatic pouch positioning, and safety interlocks to ensure optimal performance and safety during operation.
One of the advantages of using the high-efficient KF94/KN95/N95 face mask rotary packing machine is its high speed and efficiency. The machine is capable of packaging hundreds of face masks per minute, ensuring high productivity and efficiency in the packaging process.
Additionally, the machine is versatile and can be customized to accommodate different mask sizes and packaging requirements, making it suitable for a range of products and production needs. It is also designed to be easy to operate and maintain, reducing downtime and increasing production output.
In conclusion, the high-efficient KF94/KN95/N95 face mask rotary packing machine is a valuable investment for manufacturers of face masks. Its high speed, accuracy, and versatility make it a reliable and efficient solution for packaging face masks. The machine’s advanced features and ease of operation and maintenance make it an ideal choice for manufacturers looking to improve the efficiency and productivity of their production processes.
