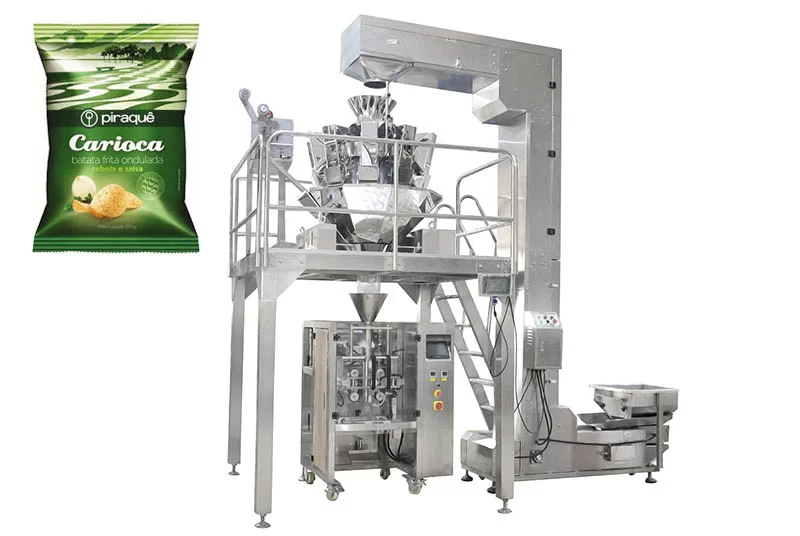

High Precision Multihead Weigher Chips/Popcorn/Snacks Packing Machine

Description

Application:

Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as Potato Chips, Popcorn, Snacks, candy, sunflower seeds, peanut, nuts, beans, almond, dry fruit, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect ), frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

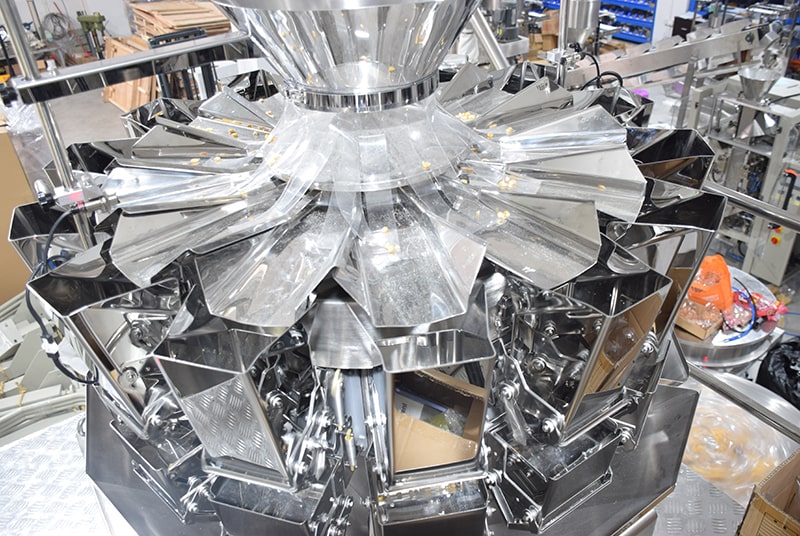

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

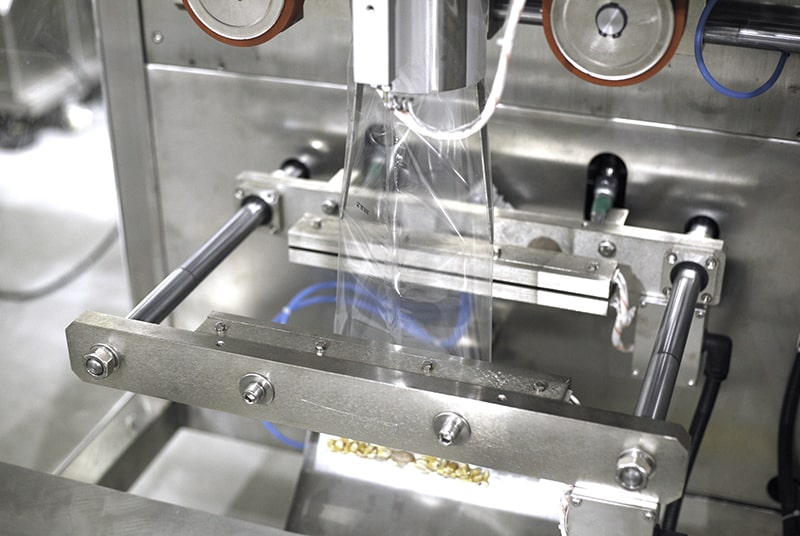

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

Parameter

Model	VK-420	VK-520	VK-720	VK-900	VK-1050	VK-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

The High Precision Multihead Weigher Chips/Popcorn/Snacks Packing Machine is a specialized packaging machine used in the food industry for accurately weighing and packing a variety of snacks such as chips, popcorn, and other similar products. It is designed to ensure high accuracy and efficiency in the packaging process, resulting in consistent product quality and reduced waste.

The machine consists of a multihead weighing system that accurately measures the weight of the product and a packaging system that forms and seals the bags. The weighing system uses advanced technology to ensure high precision and speed, with minimal product breakage or damage.

The High Precision Multihead Weigher Chips/Popcorn/Snacks Packing Machine is capable of packaging a variety of snacks, including chips, popcorn, nuts, and other similar products. It is also equipped with an easy-to-use control panel, allowing operators to adjust the packaging settings to meet the specific needs of their products.

The machine is constructed with high-quality materials, ensuring durability and reliability even in demanding production environments. It is also designed with safety features that protect operators and prevent damage to the machine.

Overall, the High Precision Multihead Weigher Chips/Popcorn/Snacks Packing Machine is an essential tool for businesses in the food industry that require fast and efficient packaging of their products. Its advanced features, high efficiency, and precise weighing and sealing system make it an ideal solution for businesses looking to increase their production processes and packaging efficiency.
