Multi Track 3/4 Side Sealing Bag Liquid Sachet Packaging Machine
Description
Application:
This machine is applicable for dosing liquid or semi-liquid and sealing in form of 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting. the detail application description as following table:
| Application Description | |
| Applicable Sealing Style | 3/ 4 sides sealing |
| Applicable Products | Configure with pump, capable to pack liquid products |
| Applicable Packaging Material |
Laminate Heat sealable packing materials such as OPP/PE, BOPP/VMPET/PE, PET/AL/PE etc. |
| Applicable industry | cream sample, shampoo, kechup, soy sauce, manyonnaise, mouthwash, salad dressing, honey, hand cleaner gel etc. |
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

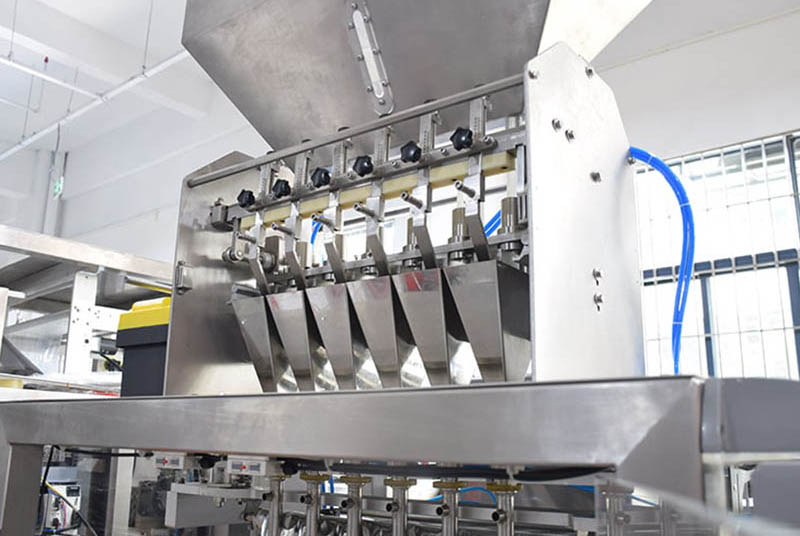

Multi lanes machine can produce multi lanes bags at same time.
Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.
Stainless steel contact part and the machine outer shell, high feature for liquid running environment.
High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.
PLC controller, high function and control the whole machine’s work steps.
Parameter
| Model | VK-480Y | VK-720Y | VK-960Y |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45–120mm; W:35-60mm | L:45–120mm; W:35-90mm | L:45–120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
The Multi Track 3/4 Side Sealing Bag Liquid Sachet Packaging Machine is a specialized machine used for packaging liquid products, such as sauces, oils, and other similar liquids. It is designed to create small, sealed packets or sachets that are easy to transport and use.
The machine is equipped with multiple tracks, allowing it to produce several sachets at once, increasing production efficiency. It also has a 3/4 side sealing design, which ensures the sachets are tightly sealed and leak-proof, protecting the liquid contents during transport and storage.
The Multi Track 3/4 Side Sealing Bag Liquid Sachet Packaging Machine utilizes a vertical form-fill-seal (VFFS) technology, which allows for fast and efficient packaging of liquids. It has a high-speed filling system that accurately dispenses the desired amount of liquid into each sachet, resulting in consistent product quality.
The machine is also equipped with a user-friendly control panel, which allows operators to adjust the settings according to the specific requirements of their products. It is constructed with high-quality materials, ensuring durability and reliability even in demanding production environments.
Overall, the Multi Track 3/4 Side Sealing Bag Liquid Sachet Packaging Machine is an essential tool for businesses in the food and beverage industry that require fast and efficient packaging of their liquid products. Its advanced features, high efficiency, and precise filling system make it an ideal solution for businesses looking to increase their production processes and packaging efficiency.
