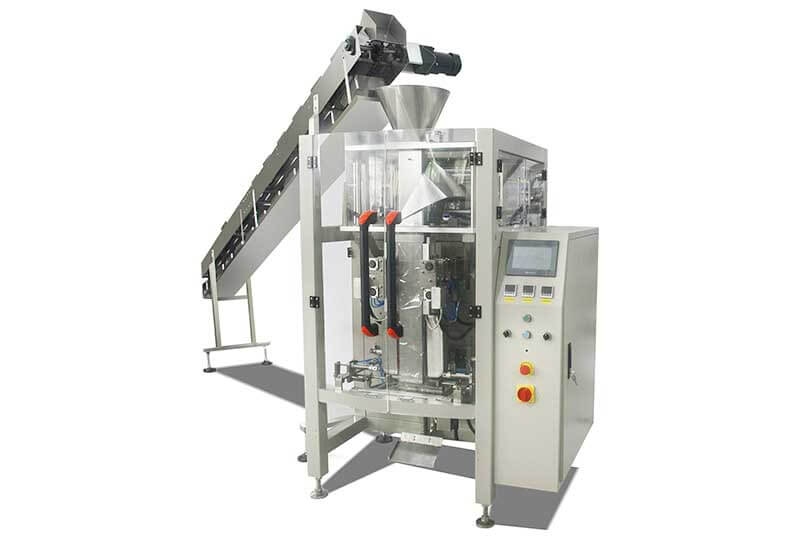

Quad Seal Bag / Block Bottom Pouch Packing Machine
Description
Application:
Quad seal bag / block bottom pouch packing machine is suitable for automatic packaging various kinds of leavened food, candies, peanuts, seeds and such materials in grain or piece as well as powder like milk powder, washing powder, starch, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
New design with perfect fashion, more reasonable structure, more advanced technology.
Longitudinal sealing is used by four sides with hot sealing type, bag is more beautiful and shape stabilization.

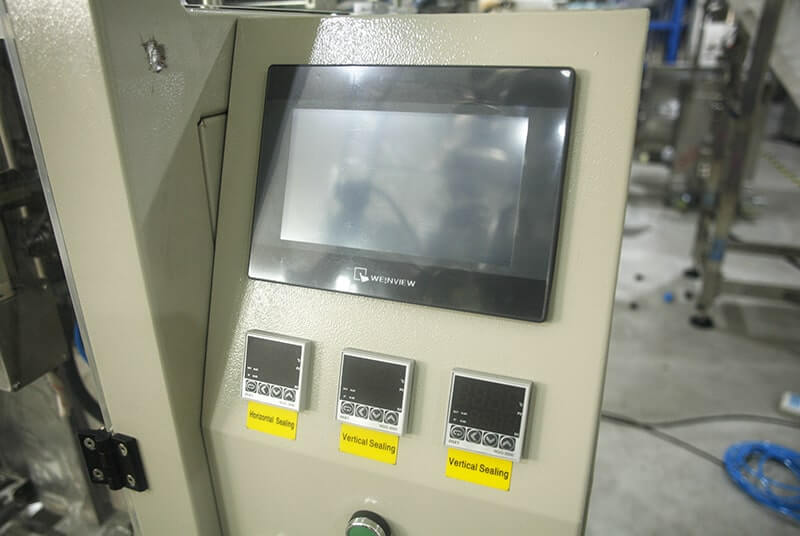

Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
Standard positioning with imported servo film tran sporting system and mark sensor,superexcellent capability for complete machine, perfect packaging.
With auto warning protection function to minimize loss.
With double transporting devices, angle fold devices and retainer devices, Function more perfect.
Various kinds of bag, it could provide the hang hole bag, link bag, etc.
Automatic correct function, save time, labor, and film,the operation more intelligent.
Adopt external film feeding mechanism. Film setting be more easy and quick.
Parameter
| Model | VK-420 | VK-520 |
| Film Width | 150-Max.420mm | 250-Max.520mm |
| Bag Length | 80-280mm | 80-350mm |
| Bag for Front width | 80-132mm | 80-150mm |
| Bag for Side width | 20-66mm | 35-90mm |
| Film Roll Diameter | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm |
| Packaging Rate | 10-40bag/min | 10-40bag/min |
| Power | 220V 50/60Hz 2.8KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1390*1155*1800mm | 1492*1255*2184mm |
| Machine Quality | About 600kg | About 700kg |
| Option device | air filling device, hole-punching device. | |
Quad Seal Bag / Block Bottom Pouch Packing Machine: The Ultimate Packaging Solution for Versatility and Convenience
Packaging is an essential aspect of modern-day business operations, and choosing the right packaging equipment is crucial for success. The quad seal bag/block bottom pouch packing machine is an advanced packaging solution designed to meet the demands of modern businesses. This cutting-edge equipment offers a range of benefits, including versatility, convenience, and efficiency.
The quad seal bag/block bottom pouch packing machine is designed to create high-quality packaging for a variety of products. Its innovative design allows it to produce pouches with a block bottom, which provides excellent stability and ensures that the packaged product remains upright. This feature is particularly useful for products that require a stable base, such as pet food, snacks, and coffee.
One of the key benefits of the quad seal bag/block bottom pouch packing machine is its versatility. It can produce pouches in different sizes and shapes, including quad seal bags, flat-bottom bags, and stand-up pouches. This versatility allows businesses to package a wide range of products with ease, saving time and money on packaging equipment and supplies.
The machine also offers convenience and efficiency. It is designed with a user-friendly touch screen interface that makes it easy to operate and monitor. The machine can produce up to 60 pouches per minute, ensuring that businesses can meet the demands of their customers quickly and efficiently. Additionally, the machine features an automatic spout insertion system that eliminates the need for manual spout insertion, further enhancing its efficiency and convenience.
The quad seal bag/block bottom pouch packing machine is built to the highest standards of quality and durability. It is constructed using high-quality materials that are resistant to wear and tear, ensuring that it can withstand the rigors of high-volume production environments. The machine also features an automated cleaning system that ensures thorough cleaning of all parts, reducing the risk of contamination and maintaining high standards of hygiene.
In conclusion, the quad seal bag/block bottom pouch packing machine is an essential investment for businesses looking for a versatile, efficient, and reliable packaging solution. Its advanced features, high-speed production, and user-friendly design make it an ideal choice for businesses of all sizes, helping them to streamline their operations and increase profitability.
